As the liquid level moves, the MLI float follows. When the float moves into the proximity of the snap switch, the switch magnet interacts with the float’s magnetic field actuating the switch. The bi-stable design of the switch ensures that it will not reset until the float passes the switch in the opposite direction.

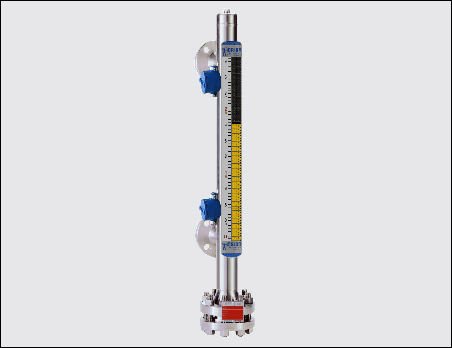

The Model OES-100 snap switch is a cam-operated double pole double throw mechanism clamp-mounted to the outside of the MLI.

The OES-100 is actuated by simple magnetic coupling. As the liquid level moves, the MLI float (with its internal magnets and flux rings) follows. When the float moves into the proximity of the snap switch, the switch magnet interacts with the float’s magnetic field actuating the switch. The bi-stable design of the switch ensures that it will not reset until the float passes the switch in the opposite direction.
