L500S Series
Vertically-adjustable suspended float level switch

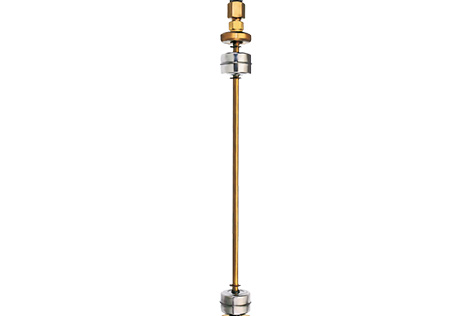

The L500S is a low-cost, single or multiple level float switch designed for adjustable level monitoring or leak detection within storage tanks, sumps and wells. The vertically-mounted L500S is suspended by an electrical cable to the desired switch position inside the tank while an integral weight maintains the correct orientation and removes slack from the cable. A compression fitting is used to secure the cable in place and forms a leak-tight seal around the electrical components. The L500S is available in PVC, brass/buna and stainless steel materials. Additional options include various switch points and special configurations.
Technology
Float level switches
All float operated liquid level controls operate on the basic buoyancy principle which states "the buoyancy force action on an object is equal to the mass of liquid displaced by the object." As a result, floats ride on the liquid surface partially submerged and move the same distance the liquid level moves. Because of this, they are normally used for narrow level differential applications such as high level alarm or low level alarm.
-
Features
-
Electrical
-
Specifications
-
Downloads
- Adjustable Setpoints
- Integral Weight Ensures Proper Orientation
- Clearance Spacers Ensure Float Movement
- Flexible Cable Provides Easy Installation
- SPST or SPDT Switch Options
- Sumps & Wells
- Leak Detection
- Underground Storage Tanks
- Wastewater
L500S PVC PVC -40º TO +140º F (-40º TO +60º C) 50 PSIG (3.4 BAR) SPST 20 VA
L500S Brass Buna -40º to +180º F (-40º to +82.2º C) 150 PSIG (10.3 bar) SPST 20 VA
L500S 316 Stainless Steel 316 Stainless Steel -40º to +300º F (-40º to +148.9º C) 100 PSIG (6.9 bar) SPST 20 VA
L500S PVC PVC -40º to +140º F (-40º to +60º C) 50 PSIG (3.4 bar) SPST 50 VA
L500S Brass Buna -40º to +180º F (-40º to +82.2º C) 150 PSIG (10.3 bar) SPST 50 VA
L500S 316 Stainless Steel 316 Stainless Steel -40º to +300º F (-40º to +148.9º C) 100 PSIG (6.9 bar) SPST 50 VA
L500S PVC PVC -40º to +140º F (-40º to +60º C) 50 PSIG (3.4 bar) SPST 100 VA
L500S Brass Buna -40º to +180º F (-40º to +82.2º C) 150 PSIG (10.3 bar) SPST 100 VA
L500S 316 Stainless Steel 316 Stainless Steel -40º to +300º F (-40º to +148.9º C) 100 PSIG (6.9 bar) SPST 100 VA
L500S PVC PVC -40º to +140º F (-40º to +60º C) 50 PSIG (3.4 bar) SPDT 100 VA
L500S Brass Buna -40º to +180º F (-40º to +82.2º C) 150 PSIG (10.3 bar) SPDT 100 VA
L500S 316 Stainless Steel 316 Stainless Steel -40º to +300º F (-40º to +148.9º C) 100 PSIG (6.9 bar) SPDT 100 VA
