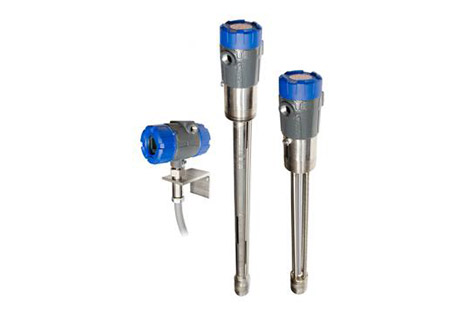

Genesis^™ Models ED1 & ED2 Multiphase Detectors

The Genesis^™ Models ED1 & ED2 detectors are Time Domain Reflectometry (TDR)-based, 24 VDC level detectors designed to accurately measure the various layers in interface level measurement applications. Encompassing a number of significant engineering accomplishments, these leading-edge level detectors are designed to provide measurement performance well beyond that of many of the more traditional technologies.

Genesis models are designed to measure multiple phases in applications with thick and dynamic emulsion layers:

Vapor phase (based on tank dimensions)

Total level (e.g., hydrocarbon liquid)

Top of emulsion layer

Bottom of emulsion layer (e.g., water level)

Sediment

Features
Probes
Operating principle
Testing principle
Approvals
Downloads

Settings

24 VDC interface detector with four (4) 4-20mA outputs for convenient control of top level, top of emulsion, water level, and sediment

Concurrent Top-Down and Bottom-Up signal generation

Changing media characteristics have no effect on level measurement

Calibration or moving of levels in the vessel is not required

4-button keypad and graphic LCD display allow for viewing of configuration parameters and performance curves

Proactive diagnostics for scheduling maintenance and mitigating unplanned shutdowns

No moving parts in the process, reducing measurement errors and downtime

Detects four levels with one top-mounted process connection

Probe designs are available up to +400F / 1000psi (+200C / 70 bar)

Proprietary and innovative software algorithms for interpreting signals

Options

Electronics can be remote mounted up to 100 feet (30 meters) away from the probe

Offered with Class 1 Div 1 and Class 1 Div 2 approvals

E N L A R G E D C O A X I A L
The standard probe offering for the Genesis™ Multiphase Detector is an enlarged diameter probe that can be generally used for most clean applications.

P E N T A R O D
With a PFA coated active center rod surrounded by four(4) reference rods, the 5-conductor Pentarod probe is an alternative probe offering for the Genesis™ Multiphase Detector. Although this probe still yields excellent performance, its open design makes it less susceptible to buildup and bridging.

What makes the Genesis^™ Models ED1 & ED2 Multiphase Detectors unique is the fact that, in addition to sending high frequency energy down the probe in the classic sense to detect the upper level, it is also sending energy up the probe to detect the various other levels that may be present. (Top of emulsion layer, water level, and sediment). This combination of "Top-Down" and "Bottom-Up" measurement, along with very special software algorithms, makes emulsion layer (also known as "rag" layer) detection possible.

ATEX	Ex d, Ex e
CSA	XP, NI
FM	XP, NI
IEC	Ex d, Ex e

Other approvals are available. Consult factory for more details.
