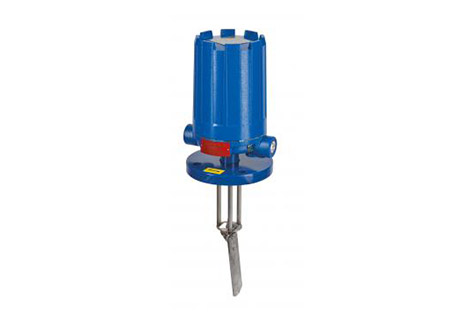

Model F10 vane-actuated mechanical flow switch
Magnetrol® flow switches provide dependable flow control for a wide range of industrial applications, detecting the presence or absence of flow in horizontal pipelines with exceptional accuracy. Designed for reliability and long service life, these switches help protect critical equipment and ensure efficient system performance.
Model F10 flow switches are vane-actuated units engineered for use with both gas and liquid flow in 2-inch through 10-inch flow lines. Their rugged construction makes them ideal for demanding environments such as chemical processing, oil and gas, water treatment, and power generation. With proven Magnetrol® quality, F10 flow switches offer a cost-effective way to monitor process flow, prevent damage from low-flow conditions, and maintain consistent system operation.
Technology
Mechanical flow switches
F10: Force of liquid or gas flow against a vertical flow vane mounted in a line causes the vane to pivot to a horizontal position, moving an attraction sleeve into the field of a switch magnet. This pulls the magnet toward the sleeve and actuates the switch.
F50: The force of liquid flow through a valve body and against a flow disc causes it to lift out of the flow path. The attraction sleeve at the top of the disc assembly moves into the field of a switch magnet, attracting the magnet and actuating the switch.
F50: The force of liquid flow through a valve body and against a flow disc causes it to lift out of the flow path. The attraction sleeve at the top of the disc assembly moves into the field of a switch magnet, attracting the magnet and actuating the switch.
-
Features
-
Applications
-
Operating principle
-
Approvals
-
Downloads
Settings
- Field adjustable
- Negligible pressure drop
- Process pressures to 1000 psig (69 bar)
- Process temps. to +450°F (+230°C)
- Actuation on increasing or decreasing flow
- Standard flow vanes for 2” through 10” flow lines
- Special sensing elements for non-standard or high flow applications
Options
- High flow vanes
- Larger pipe vanes
- Carbon steel or SST construction.
- 21-1290 GPM actuation flow rates depeding on material and line size
| ATEX | Ex d, Ex ia |
|---|---|
| CCOE | Ex d |
| CSA | XP |
| FM | XP |
| EAC (GOST) |
Ex d, Ex ia |
| IEC | Ex d, Ex ia |
| Inmetro | Ex d |
| Korea |
Ex d |
| NEPSI |
Ex d |
Other approvals are available. Consult factory for more details.
-
Approvals and Certificates
-
Instruction Manuals
-
Models F10 - F50 Flow Switches I&O Manual
-
-
Product Catalogs
