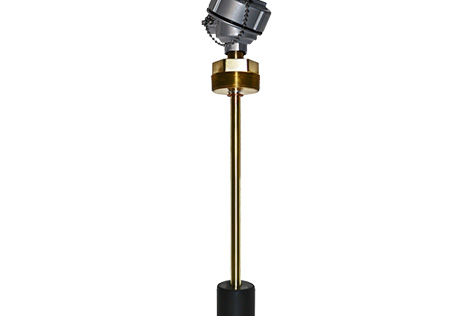

TR420 Series
Continuous output float level transmitter
The vertically-mounted TR420 Continuous Output Level Transmitter is equipped with an integral signal conditioner and provides a reliable 4-20 mA, 0-5 VDC or 1-5 VDC proportional electronic output in tank levels up to 12 feet. It can be used to input programmable controllers, meters and other digital receivers for accurate and continuous measurement in many liquid level applications. Float materials are available in stainless steel, polypropylene or buna with a selection of mounting types. The variety of float styles and densities afford the best and most direct means for continually monitoring surface interfaces of dissimilar liquids within a single tank. Additional options include high level and low level alarms as well as mounting materials in brass or 316 stainless steel.
Technology
Float level transmitter
All float-operated liquid level switches operate on the buoyancy principle: “the buoyant force acting on an object is equal to the mass of liquid displaced by the object”. As a result, the partially submerged float moves with the level of the liquid in the vessel.
The TR420 Continuous Output Transmitter employs a series of magnetic reed switches and corresponding resistors inside the vertical sensor stem that are actuated by an internal magnet within the moving float. Multiple segments are plugged together in order to achieve a probe at the desired length.
The resultant probe segments form a resistive daisy chain (series circuit). The segments are configured as a variable resistor where the magnetic reed switches are the resistance values in the circuit. As each switch closes, the resistances vary in proportion to the corresponding switch position. The signal is electronically conditioned through the transmitter control board to provide the proportional output in mA or volts DC (depending on the model selected).
The TR420 Continuous Output Transmitter employs a series of magnetic reed switches and corresponding resistors inside the vertical sensor stem that are actuated by an internal magnet within the moving float. Multiple segments are plugged together in order to achieve a probe at the desired length.
The resultant probe segments form a resistive daisy chain (series circuit). The segments are configured as a variable resistor where the magnetic reed switches are the resistance values in the circuit. As each switch closes, the resistances vary in proportion to the corresponding switch position. The signal is electronically conditioned through the transmitter control board to provide the proportional output in mA or volts DC (depending on the model selected).
-
Features
-
Electrical
-
Applications
-
Specifications
-
Downloads
- Two-Part Assembly: Junction Box & Sensing Probe
- Two-Wire Output
- Interchangeable Solid-State Electronics
- Watertight NEMA 4 (IP65) Enclosure
- Probe Lengths Up to 12 Feet
- Optional Weighted Float for Oil/Water Interface
Response Time: < 1 Second
Linearity: ± 0.50%
Power Consumption: 1 VA
- Food & Beverage Processing
- Medical
- Fuel Storage
- Underground Storage Tanks
- Pharmaceutical
- Chillers
- Cooling Towers
- HVAC
- Semiconductor Processing
| TR420 | BRASS/POLYPROPYLENE | -40º TO +160º F (-40º TO +71.1º C) | 50 PSIG (3.4 BAR) | 12 VDC OR 24 VDC | 4-20 MA, 0-5 VDC OR 1-5 VDC | ¼" OR ½" |
| TR420 | Brass/Buna-N | -40º to +180º F (-40º to +82.2º C) | 150 PSIG (10.3 bar) | 12 VDC or 24 VDC | 4-20 mA, 0-5 VDC or 1-5 VDC | ¼" or ½" |
| TR420 | Brass/316 Stainless Steel | -40º to +300º F (-40º to +148.9º C) | 750 PSIG (51.7 bar) | 12 VDC or 24 VDC | 4-20 mA, 0-5 VDC or 1-5 VDC | ¼" or ½" |
| TR420 | 316 Stainless Steel/Polypropylene | -40º to +160º F (-40º to +71.1º C) | 50 PSIG (3.4 bar) | 12 VDC or 24 VDC | 4-20 mA, 0-5 VDC or 1-5 VDC | ¼" or ½" |
| TR420 | 316 Stainless Steel/Buna-N | -40º to +180º F (-40º to +82.2º C) | 150 PSIG (10.3 bar) | 12 VDC or 24 VDC | 4-20 mA, 0-5 VDC or 1-5 VDC | ¼" or ½" |
| TR420 | 316 Stainless Steel | -40º to +300º F (-40º to +148.9º C) | 750 PSIG (51.7 bar) | 12 VDC or 24 VDC | 4-20 mA, 0-5 VDC or 1-5 VDC | ¼" or ½" |
