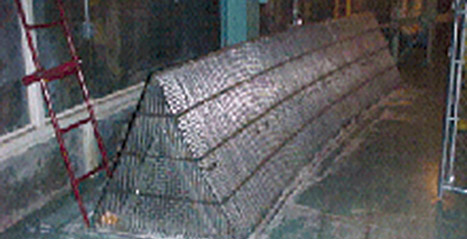

A plant has many low-lying drainage reservoirs known as sumps. Small sumps include pump enclosures and tank rupture basins that contain leakage. The reactor’s large, containment sump is an essential reservoir of the ECCS whose function is to continuously circulate coolant through the reactor once all coolant storage tanks are depleted.

Challenge

Small sumps are monitored for leak detection with simple, float-operated level switches designed for bracket mounting in floor level sumps or troughs. These switches detect leaks or spills from pumps, valves, vessels, and pipelines. Levels of the large containment sump, or ECCS sump, are monitored during the recirculation phase of residual heat removal when the reactor’s primary coolant system is down.

Consult factory for Nuclear Qualified instruments and specific model codes.

Related products

Magnetrol

Displacer switches – single, dual and tri-switch series

Single-Stage Switches

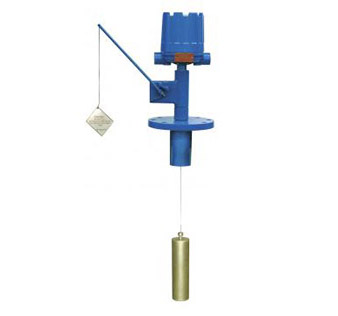

Series A10 displacer type level measurement units are wide differential units calibrated to actuate as a liquid level reaches a given displacer and to deactuate when the level reaches a second displacer. Single stage, wide differential displacer switches are factory calibrated yet field-adjustable to operate over a wide level differential band.

The minimum differential band is approximately 6 inches (152 mm) in water and varies somewhat with liquid specific gravity. The maximum differential is determined by the length of the displacer suspension cable. Series A15 units are calibrated to operate over a narrow level differential band and are ideally suited for liquid level alarm applications on either high or low level.

Dual-Stage Switches

Series B10 displacer type level measurement units are wide differential tandem switches that are factory calibrated with a choice of several switch operating sequences designed to meet virtually any application.

Series B15 units are narrow differential tandem switches that are factory calibrated. Each switch actuates at a different level.

Tri-Stage Switches

Series C10 displacer type level measurement units utilize three electrically separate control signals in a selected sequence in response to liquid level changes.

Series C15 units are wide differential switches with a choice of several operating sequences combining wide and narrow level differential and are factory calibrated.

Magnetrol

Flanged external cage liquid level switches

Flanged external cage type level switches are completely self-contained units designed for side mounting to a tank or vessel with threaded, socket weld or flanged pipe connections. In hundreds of industrial applications throughout the petroleum refining, petrochemical production and power generation markets, these switches have demonstrated their worth through reliable and repeatable service.

Magnetrol

Models T20 & T21 top-mounting single-stage and dual-stage float switches

Single Stage Switch

T20 units are simple, reliable float switches, designed for top mounting into tanks or vessels. T20 units utilize a single switch mechanism and float. It can be used for virtually any type of open or closed process or storage vessel, with either threaded or flanged type mounting, and actuating depths of up to 48 inches (1219 mm).

Dual Stage Switch

T21 units combine the functions of two separate narrow differential level controls in a single, compact, easy-to-install instrument. Two independent switch mechanisms are employed to provide two actuating levels at least 8” apart, at actuating depths of up to 48 inches (1219 mm), for applications such as high and low level alarm operation. Model T21 tandem float switches are available with optional cages to help stabilize the floats under turbulent conditions.

Magnetrol

Series B73 and series 75 sealed external cage liquid level switches

Series B73 and series 75 external cage type level switches are completely self-contained units designed for side mounting to a tank or vessel with threaded, socket weld or flanged pipe connections. These float-actuated controls have proven their reliability in process control for decades.

Other applications

Do you want personal advice for your specific control process?

Contact your local AMETEK Level Measurement Solutions representative!

Find my local representative
