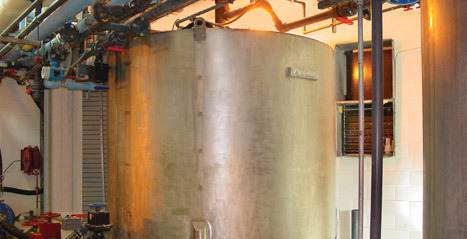

Lime slurry level

In terms of annual tonnage, lime ranks first among water treatment chemicals. Lime is used for pH adjustment, phosphate removal, sludge and biosolids conditioning, and in association with other chemicals for precipitation. Lime is initially mixed with water in lime slakers to form a slurry referred to as slake lime. The slake lime is then added to raw water for formulation under carefully controlled conditions.

Challenge

Often contained in an agitated tank, lime slurry is slightly abrasive, and can be corrosive depending upon the other chemicals involved. Contact level sensing should use single rod probes to avoid media buildup.

Non-contact radar model R82 pulse burst radar transmitter

Radar has been part of the level measurement market for more than thirty years. The early designs used in tank gauging were heavy, expensive, power-hungry and complex. Advancements in radar circuitry have evolved the modern radar transmitter so that now it is light, inexpensive, loop-powered and easy to use. The R82 is the logical extension of that evolution.

Microwave-based radar is a superior measurement technology with its ability to operate effectively in a wide range of process conditions. It has been too expensive to use as a replacement for ultrasonic transmitters in simple, daily applications...until now. The R82 radar transmitter can be considered the answer to almost every daily level measurement application imaginable.

Magnetrol

Eclipse® 706 guided wave radar transmitter

The Eclipse^® Model 706 high performance transmitter is a loop-powered, 24 VDC level transmitter that is based upon the proven technology of guided wave radar (GWR). Encompassing a number of significant engineering accomplishments, this leading-edge level transmitter is designed to provide measurement performance well beyond that of many of the more traditional technologies.

Utlilizing "diode switching" technology, along with the most comprehensive probe offering on the market, this single transmitter can be used in a wide variety of applications ranging from very light hydrocarbons to water-based media.

The innovative angled, dual compartment enclosure is now a common sight in the industry. This enclosure, first brought to the industry by Magnetrol^® in 1998, is angled to maximize ease of wiring, configuration, and viewing of the versatile graphic LCD display.

One universal ECLIPSE Model 706 transmitter can be used and interchanged with all probe types, and offers enhanced reliability as it is suitable for use in critical SIL 2/3 Certified safety loops.

The ECLIPSE Model 706 transmitter supports both the FDT/DTM and enhanced DD standards, which allows viewing of valuable configuration and diagnostic information such as the echo curve in tools such as PACTware^™, AMS Device Manager, and various HART® Field Communicators.
