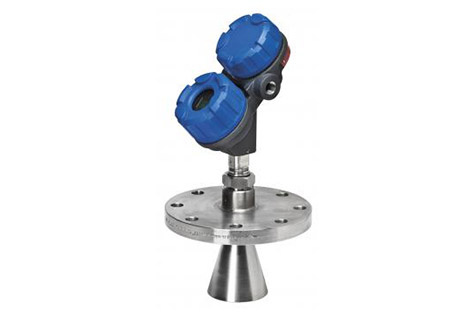

Pulsar® model R96- 6 GHz non-contact radar transmitter
The Pulsar® Model R96 is a loop-powered, 24 VDC, non-contact radar level transmitter. It has a longer measurement range, improved diagnostics and is easier to use than most loop-powered radar transmitters.
Technology
Non-Contact Radar
Non-Contact Radar level transmitters are offered with various operating frequencies, each having their own advantages.
There are two types of Non-Contact Radar transmitters:
- Frequency Modulated Continuous Wave (FMCW)
- Pulse Burst Radar
FMCW devices transmit a continuous signal with a constantly changing frequency down toward the liquid. The detected difference in frequencies between the transmitted signal and return echo is proportional to the distance.
Pulse Burst Radar transmitters, the older of the two types, emit short bursts of energy to a liquid surface, and incorporate ultra-high-speed timing circuitry to measure the time of the return signal reflected off the liquid surface. Distance is then calculated utilizing the equation:
Distance = C x Transit Time/2, (where C = Speed of Light)
Non-Contact Radar level transmitters are offered with various operating frequencies, each having their own advantages.
There are two types of Non-Contact Radar transmitters:
- Frequency Modulated Continuous Wave (FMCW)
- Pulse Burst Radar
FMCW devices transmit a continuous signal with a constantly changing frequency down toward the liquid. The detected difference in frequencies between the transmitted signal and return echo is proportional to the distance.
Pulse Burst Radar transmitters, the older of the two types, emit short bursts of energy to a liquid surface, and incorporate ultra-high-speed timing circuitry to measure the time of the return signal reflected off the liquid surface. Distance is then calculated utilizing the equation:
Distance = C x Transit Time/2, (where C = Speed of Light)
-
Features
-
Applications
-
Operating principle
-
Approvals
-
Downloads
- Performance not process dependent (changing specific gravity and dielectric have no effect)
- 6 GHz operating frequency offers superior performance in the tougher applications of turbulence, foam, and heavy vapors
- Antenna designs to +400 °F (+204 °C)
- Range up to 130 feet (40 meters)
- Quick connect/disconnect probe coupling allows vessel to remain sealed
- SIL 2 capable with Safe Failure Fraction (SFF) = 92.7% (FMEDA available upon request)
- PACTware™ PC software interface with new improved DTM.
Options
- HART® 7.1 and Foundation fieldbus™ digital communications
- 316 stainless steel dual compartment enclosure
- 4" and 6" horn antennas
- Polypropylene and Teflon® rod antennas
- Antenna nozzle extensions
| ATEX | Ex d, Ex ia, Ex n |
|---|---|
| CSA | XP, IS, NI |
| FM | XP, IS, NI |
| EAC (GOST) | Ex d, Ex ia, Metrology |
| IEC |
Ex d, Ex ia |
| SIL |
SIL 2 (1oo1) |
Other approvals are available. Consult factory for more details.
-
Approvals and Certificates
-
Instruction Manuals
-
USA Pulsar® Model R96 HART I&O Manual
-
English Pulsar® Model R96 HART I&O Manual
-
USA Pulsar® R96 FOUNDATION Fieldbus I&O Manual
-
English Pulsar® R96 FOUNDATION Fieldbus I&O Manual
-
Pulsar® R96 SIL Safety Manual I&O Manual
-
French Pulsar® Model R96 HART I&O Manual
-
German Pulsar® Model R96 HART I&O Manual
-
Italian Pulsar® Model R96 HART I&O Manual
-
-
Product Catalogs
